Quick Information

  • Brand Name: TENHUI
  • Place of Origin: China
  • Model Number : TH-18MS
  • :

Description

New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine





Automatic Mosquito Coil Production Equipment Process





New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine



New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine



Part 1. Mosquito Coil Mixing Machine



1. Large mixing (dry powder homogenization pool combination); The various raw materials mixed evenly, ready to enter a wet billet stirring.





Model : THJB -2000A

Machine Include :Screw elevator ,Screening power machine ,

                Spiral discharging machine(Pneumatic Valve Switch )

                 Electronic Metering Tank(Pneumatic Valve Switch ).

Size : 6000mmx3500mmx3500mm

Power :20KW

Operator: 1 person



    2. Wet mixing; Mix the mixture of various raw materials and the cooked starch mixture to form the wet billet into the molding machine.(Configuration: boiling machine, steam boiler).

Specific operation method :Mix the starches and cold water, then boil the starch, then mix the mixture with the mixture of the ingredients and the cooked starch.



Model:THBJ-50

Size:φ900mmx1700mm

Power:4KW



Wet billet mixer

Model:THBJ-200 B

Size:2500mmx1300mmx1600mm

Power:16.5KW

Operator:1 person



New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine

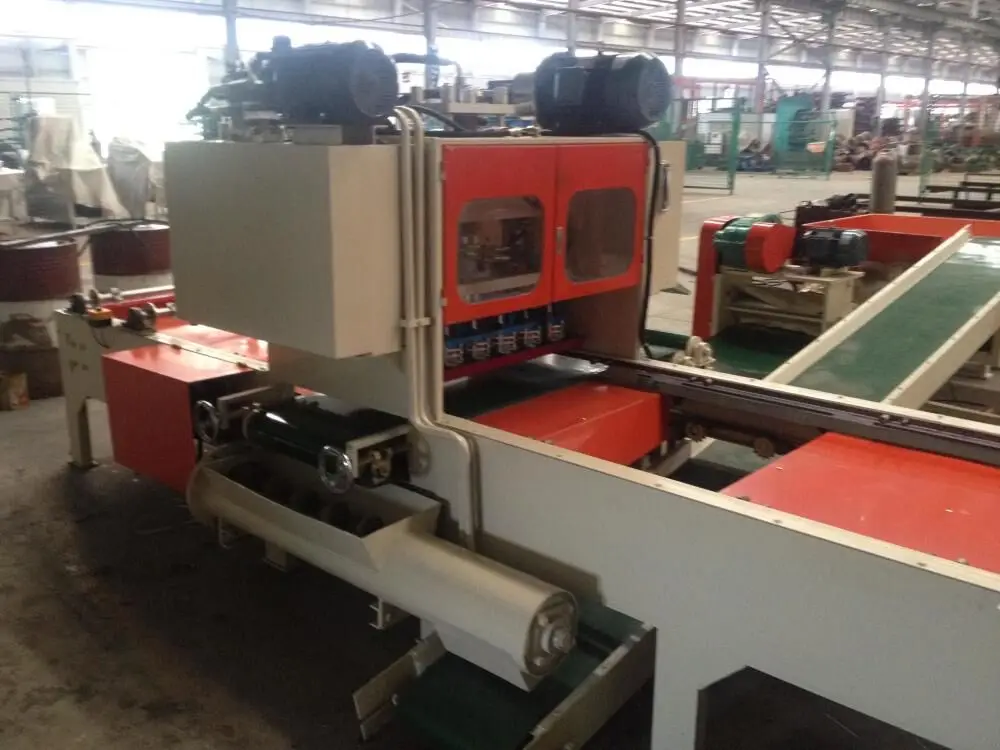

Part 2. Mosquito Coil Making Machine

The wet billet into the molding machine squeeze material facilities, through two extrusion, into the fine billet body into a strip shape, and then by the punching into mosquito-coated wet blank. (Configuration: feeder machine feeding trough for extrusion machine)



Model : THWXJ -18

Size :5300mmx5500mmx1700mm

Power :26.5KW

Stamping Frequency :18-20time/minute

Operator:3-4 person



New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine



Part 3. Mosquito Coil Dry House



Moulding wet mosquito-coated put into dryer house .You will got dryer mosquito-coated.



Size :4000mmx2300mmx25000-40000mm(Width * Height * Length)



New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine



Part 4. Mosquito Coil Collecting Machine



Automatic collection of mosquito - repellent incense made by drying oven



Model : THSXJ -3.5

Size :3900mmx300mmx1500mm

Power :3.5KW

Closed Screen Frequency:20-30screen/minute

Operator:3-4 person



New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine



Part 5. Mosquito Coil Dispatcher Machine



 Collect mosquito coil incense and enter the spray machine



Model : THFPJ -300

Size :1600mmx600mmx1500mm

Power :1.8KW

Capacity :9000-12000pcs/h

Operator:1 person



New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine



Part 6. Mosquito Coil Spray Insecticide Machine



1)  Connect with the tablet machine, and the mosquito coil is automatically put into the spray machine and sprayed with a layer of medicine on the surface of the mosquito coil.

2)Model : THPYJ -1.5

3)Size : 1600mmx600mmx1200mm

4)Power :1.5KW



New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine



Part 7. Mosquito Coil Counting Machine

Power : 3.5kw

Out cover : carbon steel

Size :2500 mm *650 mm *800mm

Function:Counting,Tidiness , double turn oven



New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine



Part 8. Mosquito Coil Packing Machine



Pack the mosquito repellent incense into the box



Model : FSD -450

Capacity :25-150/minute(in terms of product size and film thickness)

Machine Size :5720 mm *1250 mm *1800mm(Lenght *Widht *Height)        (according to product length input conveyor extension)

Power : 3.6KW

Voltage :220VAC 50HZ

Packing Material : POF  OPP  PVC

Weight :1100KG



New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine



Part 9 . Auxiliary Facilities



The plastic screen frame and the iron car, one of the machine one class wants 8000 sieve frame, two drying room (one oven wants 25 to 30 iron car), the life boiler one (0.04 MPA).



18mould  plastic screen frame size: 900mm *450mm *40mm

Weight : 1KG

28mould size:1050mm*600mm*45mm

Weight : 2KG


Product Show of New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine



New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine



New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine

New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machineNew type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machineNew type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machineNew type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machineNew type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machineNew type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machineNew type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machineNew type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine



New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machineNew type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine





New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine













Customer Visit



New type whole mosquito repellent incense making machine Automatic paper mosquito coil forming machine mosquito coil machine





Linda Yu  | Sales Manager

TENHUI MACHINERY CO., LTD

ADD: XIAMEN CITY,FUJIAN PROVINCE,CHINA

WhatsApp/ Mob: +86 150-3607-0148

Skype: lindayu9898


Price

  • Delivery Port : XIAMENPORT

Packaging & Delivery

  • Delivery Lead Time : 30-45 DAYS
  • Supply Ability : 50 SETS/MONTH
